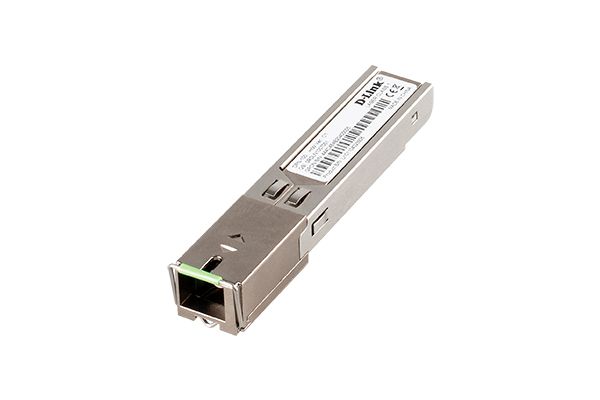

GPON SFP ONT Module
DPN-100 GPON ONT Module extends the GPON deployment in existing access network by transforming Uplink port from Ethernet to GPON. DPN-100 provides the standard SFP package with SGMII interface, which can easily replace the Ethernet SFP module existing in Ethernet gateway, switch, router etc.
Compliant with ITU-T G.984 and SFP MSA, DPN-100 Optical Network Terminal is equipped with OMCI stack, bi-directional optical transmitter and GPON MAC. The DPN-100 Transceiver supports up to 1.244 Gbps upstream and 2.488 Gbps downstream data rates.
|
General |
|
|
Interface |
• 1 х 1000Base-X port |
|
Transceiver Type |
• SFP |
|
Connector |
• SC/APC |
|
Unidirectional / Bidirectional |
• Bidirectional |
|
Standards |
• ITU-T G.984.x (G.984.5 support) • SFP MSA, INF-8074i • SFF-8472 • FCC 47 CFR Part 15, Class B • FDA 21 CFR 1040.10 & 1040.11, Class I • IEEE 802.3 • ITU-T G.984.2 Amd1, Class B+ |
|
Maximum Cable Length |
• 20 km |
|
Data Rate |
• Up to 1.244 Gbps Upstream; up to 2.488 Gbps Downstream |
|
Cable Type |
• Single-mode |
|
Wavelength |
• Tx: 1310 nm, Rx: 1490 nm |
|
Transmit Power Range |
• Max.: 5 dBm • Min.: 0,5 dBm |
|
Sensitivity |
• -28 dBm |
|
Saturation Optical Power |
• -8 dBm |
|
Supported Features |
• Hot Swap • 32 GEM-ports • 8 T-CONTs • Multicast GEM (up to 128 groups) • FEC Support • DBA Support • 8 Priority Queues • Serial Number / PLOAM Password Log in • Dying gasp |
|
Physical |
|
|
Dimensions (L x W x H) |
• 71,8 х 13,8 х 11,09 mm |
|
Weight |
• 30 g |
|
Working Environment |
|
|
Power Support |
• 3.3 V |
|
Max. Supply Current |
• 750 mА |
|
Consumption |
• < 2 W |
|
Temperature |
• Operating: -30° to +60°C • Storage: -20° to +85°C |
|
Humidity |
• Operating: 5% to 95%, non-condensed |
|
Additional Information |
|
|
Safety & EMI |
• RoHS • FCC/UL • CE |
|
Supply Package |
|
|
• DPN-100 Module |
|
